Hytrans® HS1400F scale model

For Hytrans® Systems I made several 3D printed scale models of their products.

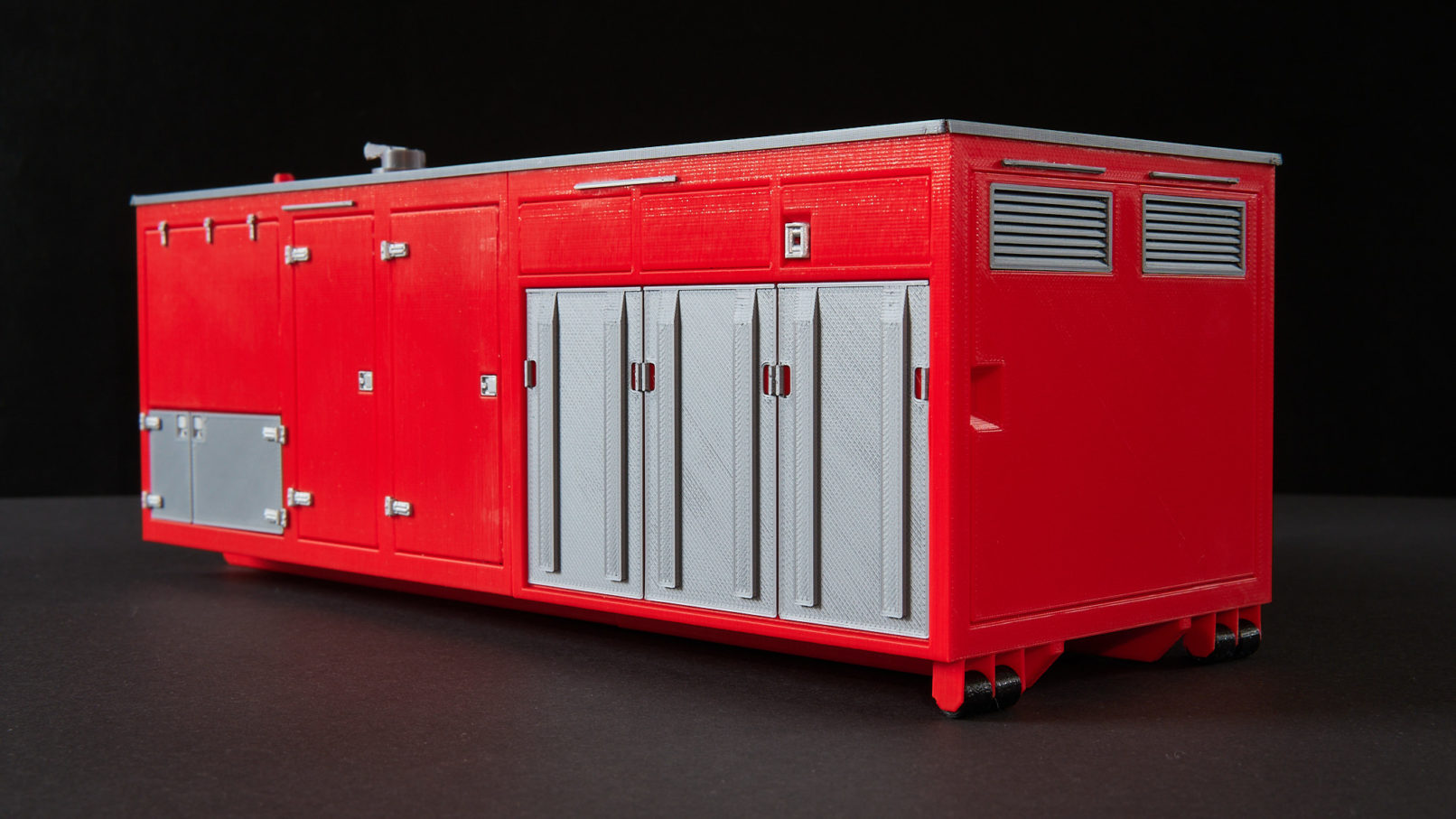

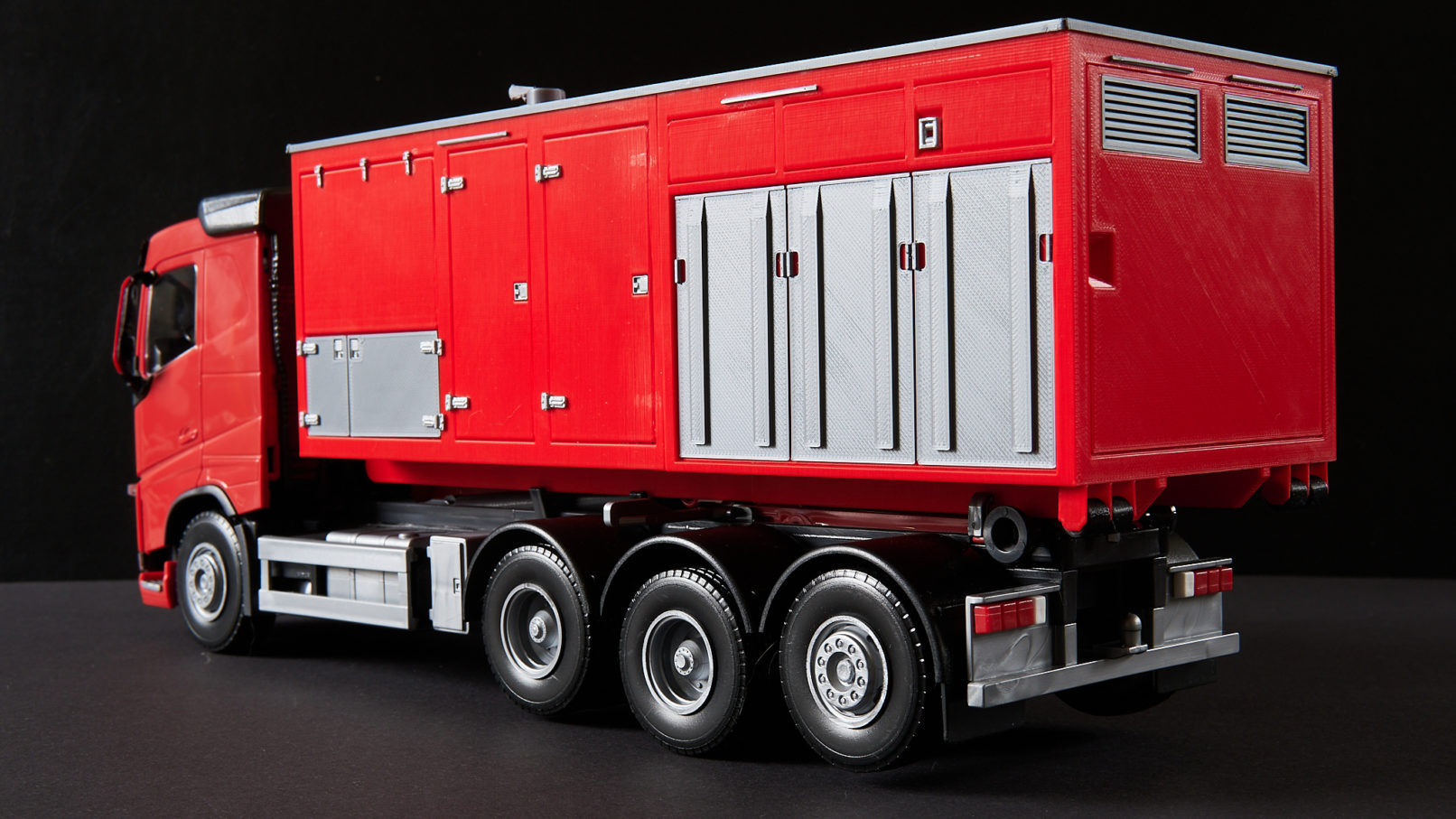

This is a 1:25 scale model of the HydroSub® 1400F unit.


The Hytrans® HydroSub® 1400 is a diesel-hydraulic power pack-pump unit powered by a 1400 KW marine grade diesel engine producing a pump capacity of 45000 lpm @ 12 bar. Featuring access to any open water source at a combined distance of 60 meters horizontally and/or 10-15 meters vertically.


The model was made with the help of several types of 3D printing techniques and is completely accurate.

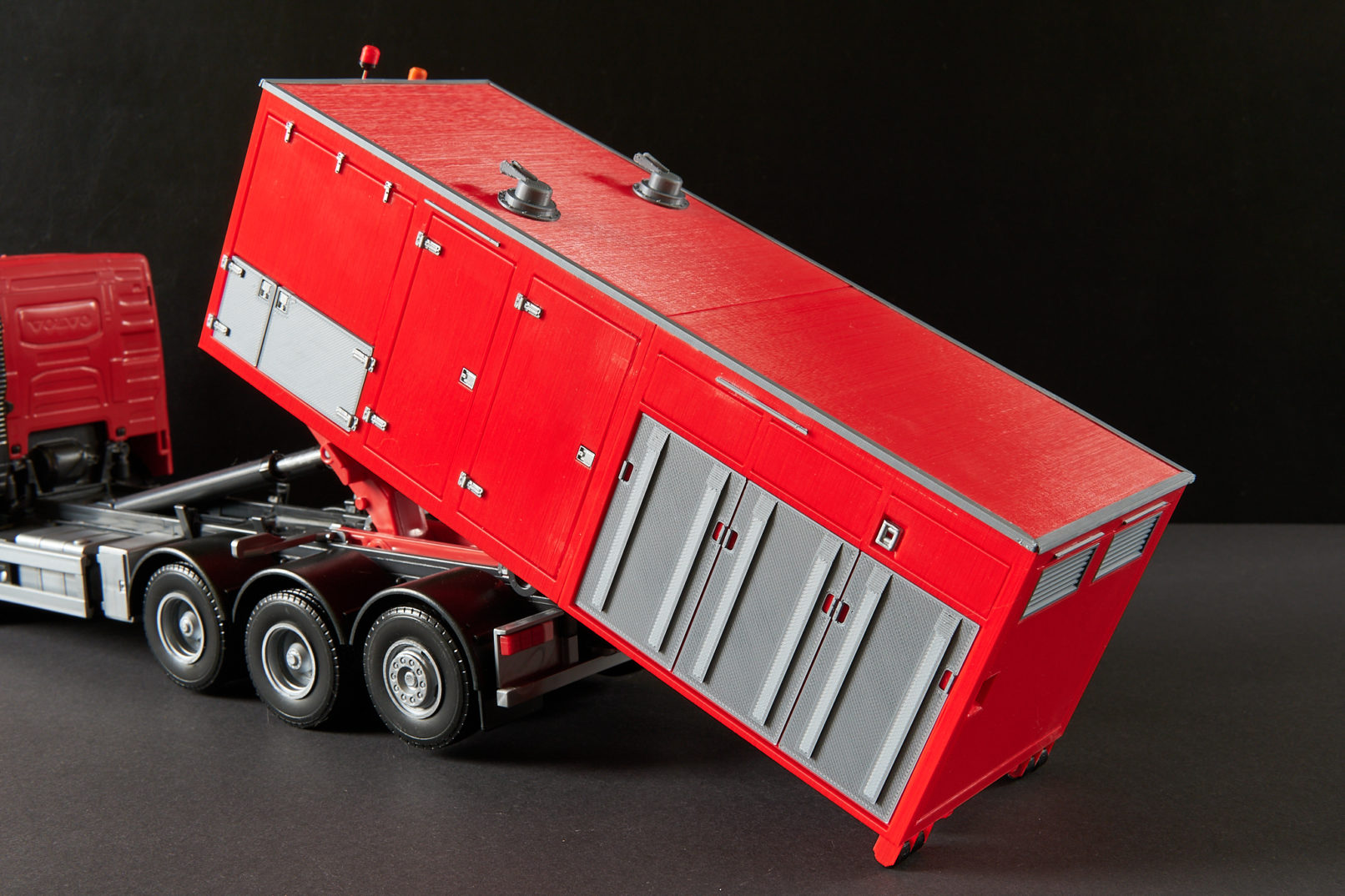

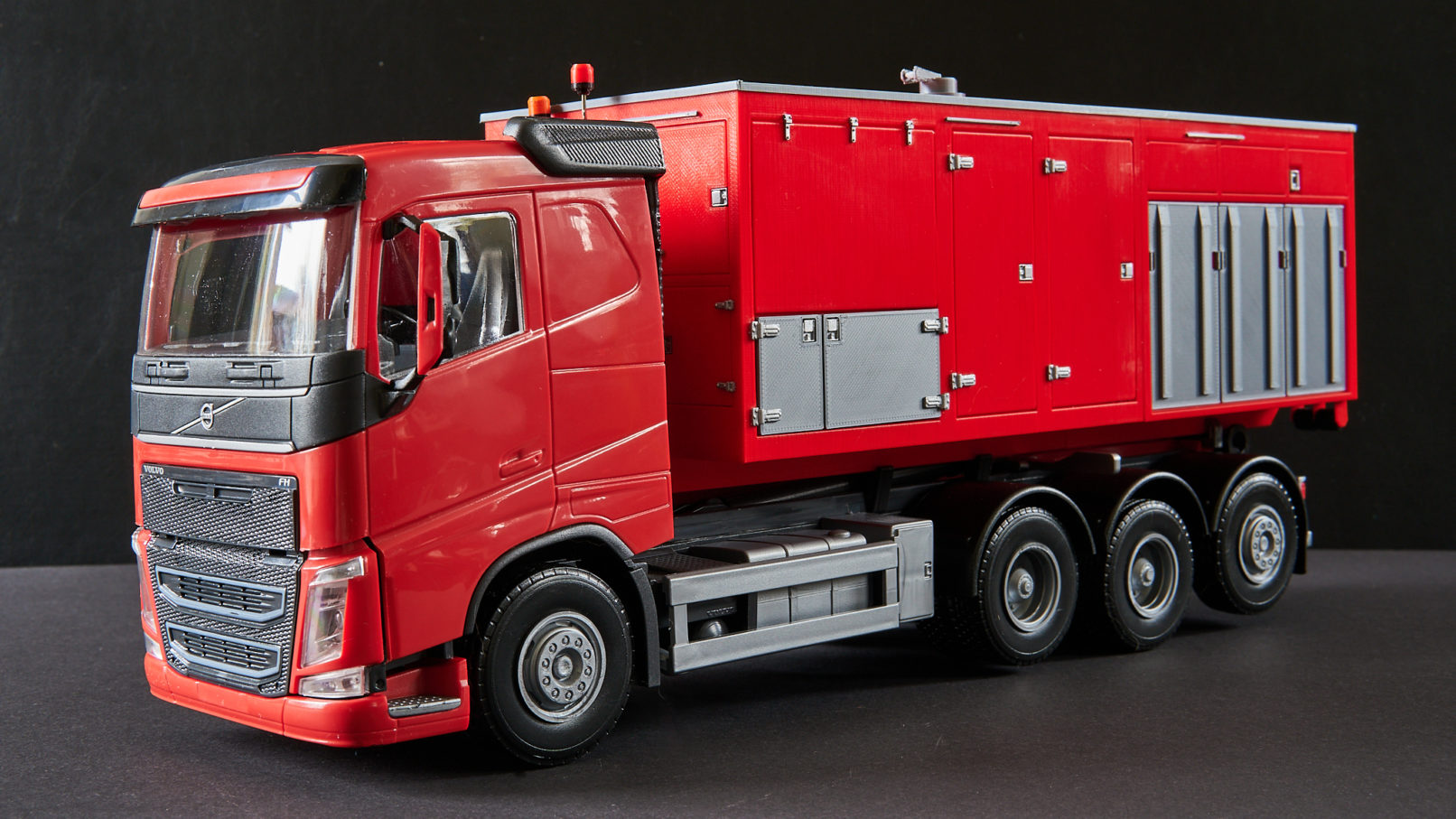

(The Volvo truck is supplied by Volvo and not 3D printed!)

Software used

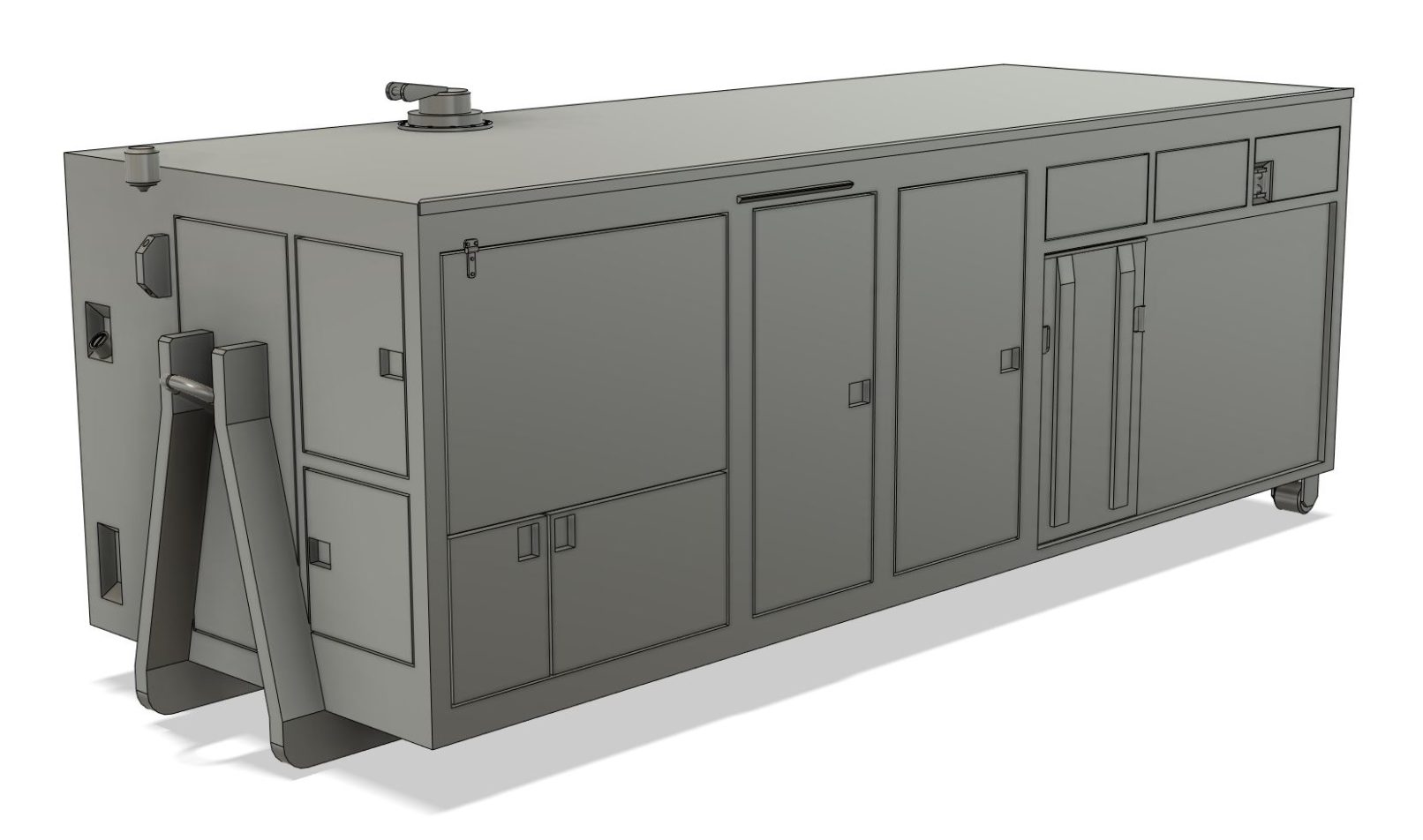

  • Autodesk Fusion 360
  • Prusa Slicer
  • Affinity Designer
